Enjeksiyon & Konfeksiyon

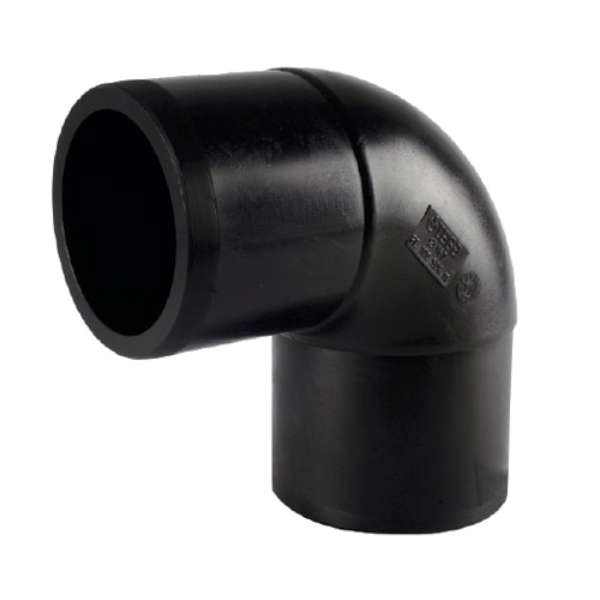

90° Dirsek Enjeksiyon Ek Parçası PE100
SDR 17 PN10 90°

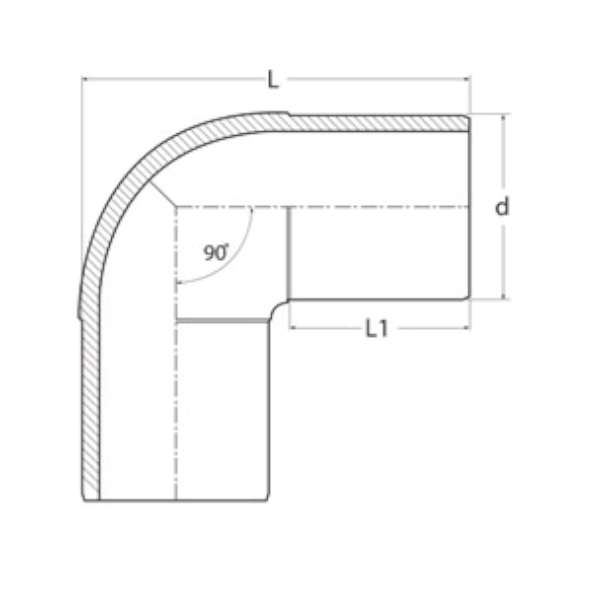

| d | KOD | Kg. | L(mm) | Z (mm) | Adet |
| 90 | 2007743 | 0,64 | 110 | 264 | 1 |
| 110 | 2007744 | 1,06 | 115 | 293 | 1 |
| 125 | 2007725 | 1,42 | 120 | 305 | 1 |
| UO | 2007546 | 1,93 | 125 | 330 | 1 |
| 160 | 2007547 | 2,64 | 130 | 345 | 1 |
| 180 | 2007548 | 3,55 | 135 | 368 | 1 |
| 200 | 2007549 | 5,40 | 145 | 463 | 1 |
| 225 | 2007550 | 7,10 | 150 | 481 | 1 |
| 250 | 2007551 | 9,45 | 160 | 518 | 1 |
| 280 | 2007552 | 12,43 | 170 | 542 | 1 |
| 315 | 2007553 | 16,41 | 180 | 562 | 1 |
| 355 | 2007554 | 22,65 | 195 | 611 | 1 |
| 400 | 2007555 | 30,60 | 210 | 649 | 1 |
| 450 | 2007556 | 41,22 | 225 | 689 | 1 |
| 500 | 2007557 | 57,04 | 245 | 775 | 1 |
| 560 | 2007558 | 97,15 | 305 | 1.070 | 1 |
| 630 | 2007559 | 126,96 | 305 | 1.105 | 1 |
| 710 | 2007560 | 167,03 | 305 | 1.145 | 1 |
| 800 | 2007561 | 223,54 | 320 | 1.205 | 1 |
| 900 | 2007562 | 302,84 | 350 | 1.285 | 1 |
| 1000 | 2007563 | 387,96 | 350 | 1.335 | 1 |
Enjeksiyon & Konfeksiyon
SDR 11 PN16 90°
| d | KOD | Kg. | L(mm| | Z (mm| |
| 90 | 2007766 | 0,95 | 110 | 264 |
| 110 | 2007767 | 1,55 | 115 | 293 |
| 125 | 2007600 | 2,10 | 120 | 305 |
| 140 | 2007601 | 2,85 | 125 | 330 |
| 160 | 2007602 | 3,88 | 130 | 345 |
| 180 | 2007603 | 5,22 | 135 | 368 |
| 200 | 2007604 | 7,95 | 145 | 463 |
| 225 | 2007605 | 10,45 | 150 | 481 |
| 250 | 2007606 | 13,90 | 160 | 518 |
| 280 | 2007607 | 18,29 | 170 | 542 |
| 315 | 2007608 | 24,12 | 180 | 562 |
| 355 | 2007609 | 33,30 | 195 | 611 |
| 400 | 2007610 | 45,00 | 210 | 649 |
| 450 | 2007611 | 60,63 | 225 | 689 |
| 500 | 2007612 | 83,88 | 245 | 775 |
| 560 | 2007613 | 143,06 | 305 | 1.070 |
| 630 | 2007714 | 186,82 | 305 | 1.105 |
| 710 | 2007615 | 245,63 | 305 | 1.145 |
| 800 | 2007616 | 328,73 | 320 | 1.205 |
| 900 | 2007617 | 445,35 | 350 | 1.285 |
| 1000 | 2007768 | 570,53 | 350 | 1.335 |
