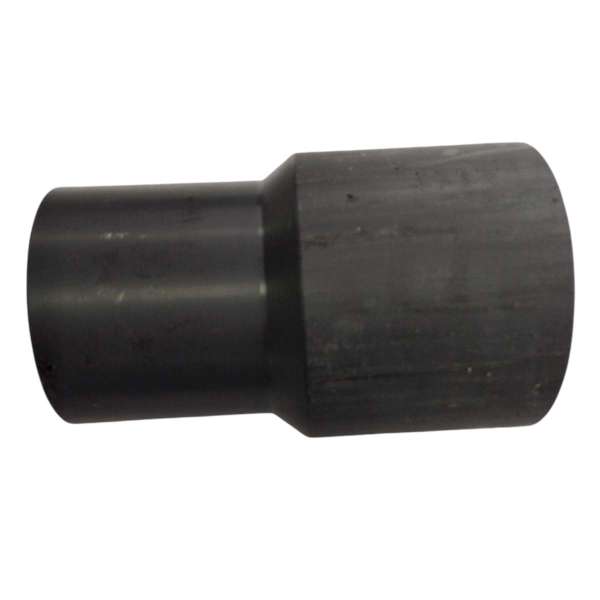

PE100 Redüksiyon DIN 16963 Elektrofüzyon ek parçaları.
| PE100 REDÜKSİYON (Elektrofüzyon) DIN 16963 | ||||||||||
    | ||||||||||
| D1 (mm) | D2 (mm) | L1 (mm) | L2 (mm) | L (mm) | PN6 | PN10 | PN16 | |||
| KOD NO | AĞIRLIK (Kg) | KOD NO | AĞIRLIK (Kg) | KOD NO | AĞIRLIK (Kg) | |||||
| 90 | 63 | 87 | 65 | 160 | 1.17.010.0090.0063 | 0,33 | 1.17.010.0090.0063 | 0,37 | 1.17.010.0090.0063 | 0,48 |
| 90 | 75 | 90 | 70 | 160 | 1.17.010.0090.0075 | 0,23 | 1.17.010.0090.0075 | 0,27 | 1.17.010.0090.0075 | 0,40 |
| 110 | 50 | 93 | 60 | 170 | 1.17.010.0110.0050 | 0,62 | 1.17.010.0110.0050 | 0,64 | 1.17.010.0110.0050 | 0,78 |
| 110 | 63 | 96 | 65 | 175 | 1.17.010.0110.0063 | 0,57 | 1.17.010.0110.0063 | 0,61 | 1.17.010.0110.0063 | 0,77 |
| 110 | 75 | 95 | 70 | 175 | 1.17.010.0110.0075 | 0,51 | 1.17.010.0110.0075 | 0,56 | 1.17.010.0110.0075 | 0,73 |
| 110 | 90 | 94 | 85 | 185 | 1.17.010.0110.0090 | 0,36 | 1.17.010.0110.0090 | 0,45 | 1.17.010.0110.0090 | 0,65 |
| 125 | 50 | 98 | 60 | 180 | 1.17.010.0125.0050 | 0,94 | 1.17.010.0125.0050 | 0,96 | 1.17.010.0125.0050 | 1,15 |
| 125 | 63 | 97 | 65 | 180 | 1.17.010.0125.0063 | 0,87 | 1.17.010.0125.0063 | 0,91 | 1.17.010.0125.0063 | 1,11 |
| 125 | 75 | 96 | 70 | 180 | 1.17.010.0125.0075 | 0,81 | 1.17.010.0125.0075 | 0,86 | 1.17.010.0125.0075 | 1,07 |
| 125 | 90 | 93 | 85 | 190 | 1.17.010.0125.0090 | 0,72 | 1.17.010.0125.0090 | 0,80 | 1.17.010.0125.0090 | 1,05 |
| 125 | 110 | 96 | 95 | 195 | 1.17.010.0125.0110 | 0,50 | 1.17.010.0125.0110 | 0,64 | 1.17.010.0125.0110 | 0,94 |
| 140 | 63 | 98 | 65 | 120 | 1.17.010.0140.0063 | 1,17 | 1.17.010.0140.0063 | 1,21 | 1.17.010.0140.0063 | 1,45 |
| 140 | 75 | 98 | 70 | 185 | 1.17.010.0140.0075 | 1,10 | 1.17.010.0140.0075 | 1,15 | 1.17.010.0140.0075 | 1,41 |
| 140 | 90 | 98 | 85 | 195 | 1.17.010.0140.0090 | 1,00 | 1.17.010.0140.0090 | 1,09 | 1.17.010.0140.0090 | 1,38 |
| 140 | 110 | 98 | 95 | 200 | 1.17.010.0140.0110 | 0,86 | 1.17.010.0140.0110 | 1,00 | 1.17.010.0140.0110 | 1,34 |
| 140 | 125 | 98 | 95 | 195 | 1.17.010.0140.0125 | 0,64 | 1.17.010.0140.0125 | 0,81 | 1.17.010.0140.0125 | 1,20 |
| 160 | 90 | 104 | 85 | 210 | 1.17.010.0160.0090 | 1,41 | 1.17.010.0160.0090 | 1,50 | 1.17.010.0160.0090 | 1,88 |
| 160 | 110 | 98 | 95 | 210 | 1.17.010.0160.0110 | 1,24 | 1.17.010.0160.0110 | 1,38 | 1.17.010.0160.0110 | 1,80 |
| 160 | 125 | 104 | 95 | 210 | 1.17.010.0160.0125 | 1,12 | 1.17.010.0160.0125 | 1,29 | 1.17.010.0160.0125 | 1,77 |
| 160 | 140 | 104 | 95 | 205 | 1.17.010.0160.0140 | 0,86 | 1.17.010.0160.0140 | 1,08 | 1.17.010.0160.0140 | 1,60 |
| 180 | 90 | 114 | 85 | 225 | 1.17.010.0180.0090 | 1,98 | 1.17.010.0180.0090 | 2,07 | 1.17.010.0180.0090 | 2,56 |
| 180 | 110 | 115 | 95 | 230 | 1.17.010.0180.0110 | 1,83 | 1.17.010.0180.0110 | 1,97 | 1.17.010.0180.0110 | 2,51 |
| 180 | 125 | 114 | 95 | 225 | 1.17.010.0180.0125 | 1,68 | 1.17.010.0180.0125 | 1,85 | 1.17.010.0180.0125 | 2,43 |
| 180 | 140 | 118 | 95 | 225 | 1.17.010.0180.0140 | 1,54 | 1.17.010.0180.0140 | 1,76 | 1.17.010.0180.0140 | 2,39 |
| 180 | 160 | 114 | 105 | 225 | 1.17.010.0180.0160 | 1,19 | 1.17.010.0180.0160 | 1,50 | 1.17.010.0180.0160 | 2,22 |
| 200 | 110 | 118 | 95 | 245 | 1.17.010.0200.0110 | 2,50 | 1.17.010.0200.0110 | 2,64 | 1.17.010.0200.0110 | 3,31 |
| 200 | 125 | 123 | 95 | 240 | 1.17.010.0200.0125 | 2,34 | 1.17.010.0200.0125 | 2,51 | 1.17.010.0200.0125 | 3,23 |
| 200 | 140 | 123 | 95 | 235 | 1.17.010.0200.0140 | 2,17 | 1.17.010.0200.0140 | 2,38 | 1.17.010.0200.0140 | 3,14 |
| 200 | 160 | 123 | 105 | 240 | 1.17.010.0200.0160 | 1,95 | 1.17.010.0200.0160 | 2,25 | 1.17.010.0200.0160 | 3,10 |
| 200 | 180 | 124 | 115 | 245 | 1.17.010.0200.0180 | 1,59 | 1.17.010.0200.0180 | 2,26 | 1.17.010.0200.0180 | 2,96 |
| 225 | 110 | 131 | 95 | 260 | 1.17.010.0225.0110 | 3,34 | 1.17.010.0225.0110 | 3,48 | 1.17.010.0225.0110 | 4,35 |
| 225 | 125 | 131 | 95 | 255 | 1.17.010.0225.0125 | 3,18 | 1.17.010.0225.0125 | 3,35 | 1.17.010.0225.0125 | 4,26 |
| 225 | 140 | 130 | 95 | 250 | 1.17.010.0225.0140 | 2,99 | 1.17.010.0225.0140 | 3,21 | 1.17.010.0225.0140 | 4,15 |
| 225 | 160 | 136 | 105 | 260 | 1.17.010.0225.0160 | 2,76 | 1.17.010.0225.0160 | 3,06 | 1.17.010.0225.0160 | 4,10 |
| 225 | 180 | 131 | 115 | 265 | 1.17.010.0225.0180 | 2,56 | 1.17.010.0225.0180 | 3,23 | 1.17.010.0225.0180 | 4,13 |
| 225 | 200 | 133 | 125 | 265 | 1.17.010.0225.0200 | 2,14 | 1.17.010.0225.0200 | 2,66 | 1.17.010.0225.0200 | 3,93 |
| 250 | 125 | 134 | 95 | 255 | 1.17.010.0250.0125 | 4,21 | 1.17.010.0250.0125 | 4,38 | 1.17.010.0250.0125 | 5,50 |
| 250 | 140 | 128 | 95 | 260 | 1.17.010.0250.0140 | 3,96 | 1.17.010.0250.0140 | 4,17 | 1.17.010.0250.0140 | 5,30 |
| 250 | 160 | 117 | 105 | 260 | 1.17.010.0250.0160 | 3,72 | 1.17.010.0250.0160 | 4,02 | 1.17.010.0250.0160 | 5,23 |
| 250 | 180 | 115 | 115 | 260 | 1.17.010.0250.0180 | 3,41 | 1.17.010.0250.0180 | 3,82 | 1.17.010.0250.0180 | 5,10 |
| 250 | 200 | 119 | 125 | 265 | 1.17.010.0250.0200 | 3,15 | 1.17.010.0250.0200 | 3,68 | 1.17.010.0250.0200 | 5,09 |
| 280 | 140 | 139 | 95 | 275 | 1.17.010.0280.0140 | 5,35 | 1.17.010.0280.0140 | 5,57 | 1.17.010.0280.0140 | 7,03 |
| 280 | 160 | 135 | 105 | 275 | 1.17.010.0280.0160 | 5,03 | 1.17.010.0280.0160 | 5,33 | 1.17.010.0280.0160 | 6,85 |
| 280 | 180 | 118 | 115 | 275 | 1.17.010.0280.0160 | 4,69 | 1.17.010.0280.0160 | 5,10 | 1.17.010.0280.0160 | 6,67 |
| 280 | 200 | 121 | 125 | 280 | 1.17.010.0280.0200 | 4,42 | 1.17.010.0280.0200 | 4,94 | 1.17.010.0280.0200 | 6,64 |
| 280 | 225 | 122 | 130 | 275 | 1.17.010.0280.0225 | 3,96 | 1.17.010.0280.0225 | 4,64 | 1.17.010.0280.0225 | 6,48 |
| 280 | 250 | 117 | 115 | 245 | 1.17.010.0280.0250 | 3,10 | 1.17.010.0280.0250 | 3,87 | 1.17.010.0280.0250 | 5,74 |
| 315 | 160 | 160 | 105 | 325 | 1.17.010.0315.0160 | 8,59 | 1.17.010.0315.0160 | 8,90 | 1.17.010.0315.0160 | 10,71 |
| 315 | 180 | 176 | 115 | 330 | 1.17.010.0315.0180 | 8,06 | 1.17.010.0315.0180 | 8,47 | 1.17.010.0315.0180 | 10,37 |
| 315 | 200 | 141 | 125 | 300 | 1.17.010.0315.0200 | 6,23 | 1.17.010.0315.0200 | 6,75 | 1.17.010.0315.0200 | 8,89 |
| 315 | 225 | 127 | 130 | 295 | 1.17.010.0315.0225 | 5,74 | 1.17.010.0315.0225 | 6,42 | 1.17.010.0315.0225 | 8,67 |
| 315 | 250 | 127 | 115 | 270 | 1.17.010.0315.0250 | 5,08 | 1.17.010.0315.0250 | 5,85 | 1.17.010.0315.0250 | 8,15 |
| 315 | 280 | 125 | 120 | 260 | 1.17.010.0315.0280 | 4,13 | 1.17.010.0315.0280 | 5,13 | 1.17.010.0315.0280 | 7,58 |
| 355 | 200 | 130 | 125 | 300 | 1.17.010.0355.0200 | 8,23 | 1.17.010.0355.0200 | 9,13 | 1.17.010.0355.0200 | 11,27 |
| 355 | 225 | 132 | 130 | 300 | 1.17.010.0355.0225 | 7,80 | 1.17.010.0355.0225 | 8,90 | 1.17.010.0355.0225 | 11,15 |
| 355 | 250 | 145 | 115 | 290 | 1.17.010.0355.0250 | 7,43 | 1.17.010.0355.0250 | 8,20 | 1.17.010.0355.0250 | 11,05 |
| 355 | 280 | 128 | 120 | 295 | 1.17.010.0355.0280 | 6,55 | 1.17.010.0355.0280 | 7,52 | 1.17.010.0355.0280 | 10,47 |
| 355 | 315 | 133 | 125 | 275 | 1.17.010.0355.0315 | 5,51 | 1.17.010.0355.0315 | 6,82 | 1.17.010.0355.0315 | 10,07 |
| 400 | 200 | 125 | 125 | 320 | 1.17.010.0400.0200 | 13,23 | 1.17.010.0400.0200 | 13,76 | 1.17.010.0400.0200 | 16,39 |
| 400 | 225 | 170 | 130 | 350 | 1.17.010.0400.0225 | 13,51 | 1.17.010.0400.0225 | 14,36 | 1.17.010.0400.0225 | 17,75 |
| 400 | 250 | 147 | 115 | 325 | 1.17.010.0400.0250 | 12,03 | 1.17.010.0400.0250 | 12,80 | 1.17.010.0400.0250 | 15,97 |
| 400 | 280 | 145 | 120 | 300 | 1.17.010.0400.0280 | 9,61 | 1.17.010.0400.0280 | 10,60 | 1.17.010.0400.0280 | 14,32 |
| 400 | 315 | 144 | 125 | 305 | 1.17.010.0400.0315 | 8,95 | 1.17.010.0400.0315 | 10,26 | 1.17.010.0400.0315 | 14,36 |
| 400 | 355 | 146 | 130 | 295 | 1.17.010.0400.0355 | 7,48 | 1.17.010.0400.0355 | 9,18 | 1.17.010.0400.0355 | 13,57 |
| 450 | 315 | 156 | 125 | 320 | 1.17.010.0450.0315 | 12,75 | 1.17.010.0450.0315 | 14,06 | 1.17.010.0450.0315 | 19,06 |
| 450 | 355 | 155 | 130 | 325 | 1.17.010.0450.0355 | 11,94 | 1.17.010.0450.0355 | 13,64 | 1.17.010.0450.0355 | 19,14 |
| 450 | 400 | 154 | 145 | 320 | 1.17.010.0450.0400 | 10,10 | 1.17.010.0450.0400 | 12,41 | 1.17.010.0450.0400 | 18,37 |
| 500 | 355 | 166 | 120 | 315 | 1.17.010.0500.0355 | 13,92 | 1.17.010.0500.0355 | 20,96 | 1.17.010.0500.0355 | 21,59 |
| 500 | 400 | 166 | 145 | 340 | 1.17.010.0500.0400 | 27,00 | 1.17.010.0500.0400 | 25,18 | 1.17.010.0500.0400 | 24,50 |
| 500 | 450 | 164 | 155 | 340 | 1.17.010.0500.0450 | 13,26 | 1.17.010.0500.0450 | 16,33 | 1.17.010.0500.0450 | 24,15 |
| 560 | 355 | 168 | 130 | 370 | 1.17.010.0560.0355 | 25,32 | 1.17.010.0560.0355 | 27,02 | 1.17.010.0560.0355 | 34,20 |
| 560 | 400 | 172 | 140 | 405 | 1.17.010.0560.0400 | 25,97 | 1.17.010.0560.0400 | 28,22 | 1.17.010.0560.0400 | 36,14 |
| 560 | 450 | 168 | 155 | 355 | 1.17.010.0560.0450 | 18,80 | 1.17.010.0560.0450 | 21,86 | 1.17.010.0560.0450 | 31,08 |
| 560 | 500 | 177 | 160 | 350 | 1.17.010.0560.0500 | 17,20 | 1.17.010.0560.0500 | 21,08 | 1.17.010.0560.0500 | 31,17 |
| 630 | 450 | 175 | 145 | 415 | 1.17.010.0630.0450 | 26,78 | 1.17.010.0630.0450 | 39,06 | 1.17.010.0630.0450 | 39,99 |
| 630 | 500 | 175 | 155 | 425 | 1.17.010.0630.0500 | 28,20 | 1.17.010.0630.0500 | 32,00 | 1.17.010.0630.0500 | 43,35 |
| 630 | 560 | 175 | 170 | 375 | 1.17.010.0630.0560 | 22,77 | 1.17.010.0630.0560 | 27,81 | 1.17.010.0630.0560 | 41,12 |
| 710 | 560 | 182 | 160 | 440 | 1.17.010.0710.0560 | 36,74 | 1.17.010.0710.0560 | 41,58 | 1.17.010.0710.0560 | 56,51 |
| 710 | 630 | 182 | 175 | 380 | 1.17.010.0710.0630 | 29,06 | 1.17.010.0710.0630 | 35,61 | 1.17.010.0710.0630 | 52,69 |
| 800 | 630 | 184 | 175 | 460 | 1.17.010.0800.0630 | 47,79 | 1.17.010.0800.0630 | 54,34 | 1.17.010.0800.0630 | 74,11 |
| 800 | 710 | 184 | 170 | 380 | 1.17.010.0800.0710 | 37,17 | 1.17.010.0800.0710 | 45,30 | 1.17.010.0800.0710 | 67,16 |
| 900 | 710 | 231 | 180 | 515 | 1.17.010.0900.0710 | 71,47 | 1.17.010.0900.0710 | 82,41 | 1.17.010.0900.0710 | 59,50 |
| 900 | 800 | 231 | 190 | 450 | 1.17.010.0900.0800 | 1.17.010.0900.0800 | 66,74 | 1.17.010.0900.0800 | ||
