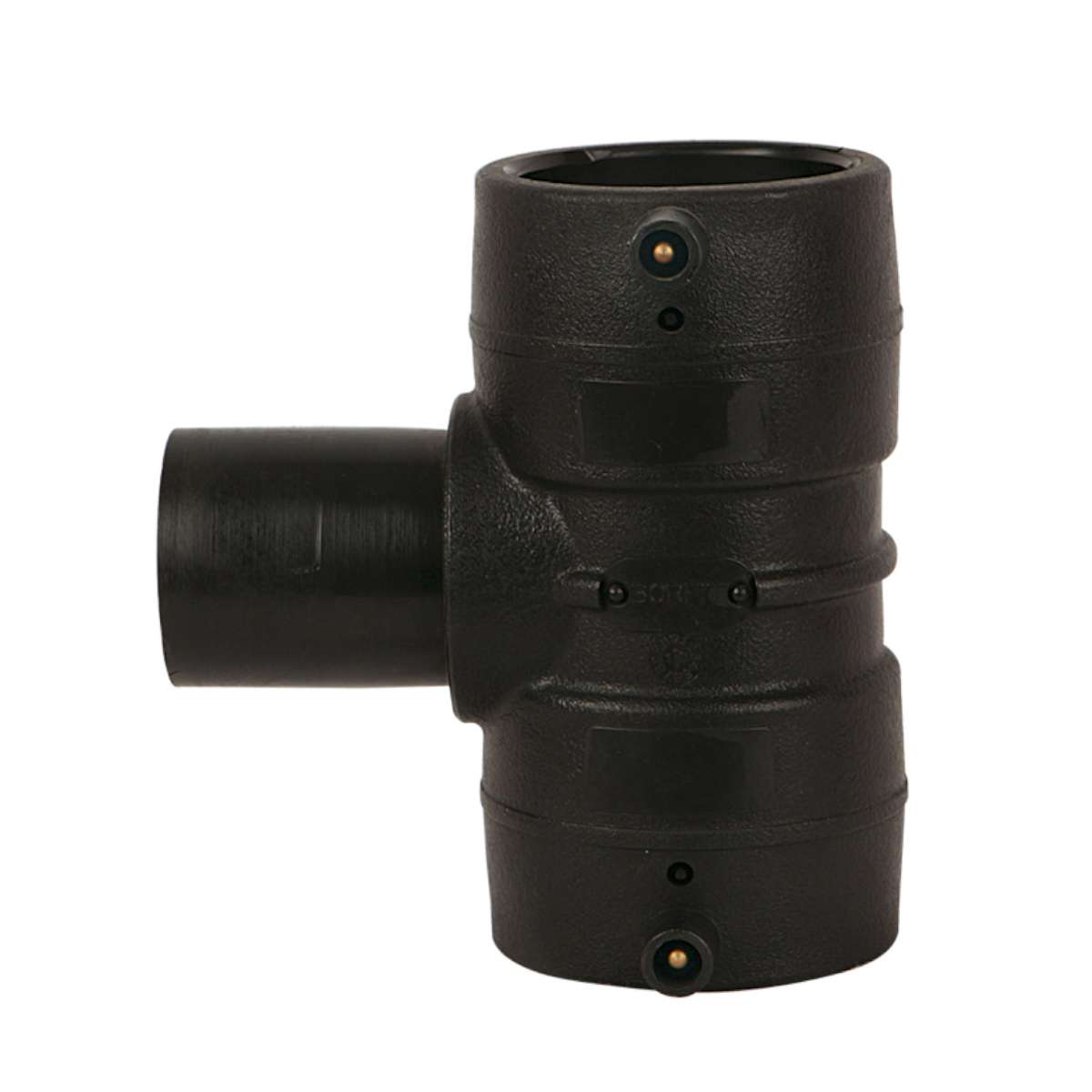

PE100 İnegal Te DIN 16963 Elektrofüzyon ek parçaları.
| PE100 İNEGAL TE (Elektrofüzyon) DIN 16963 | |||||||||
    | |||||||||
| D1 (mm) | D2 (mm) | L (mm) | Z (mm) | PN6 | PN10 | PN16 | |||
| KOD NO | AĞIRLIK (Kg) | KOD NO | AĞIRLIK (Kg) | KOD NO | AĞIRLIK (Kg) | ||||
| 90 | 50 | 265 | 45 | 1.15.006.0090.0050 | 0,41 | 1.15.006.0090.0050 | 0,57 | 1.15.006.0090.0050 | 0,78 |
| 90 | 63 | 265 | 45 | 1.15.006.0090.0063 | 0,39 | 1.15.006.0090.0063 | 0,58 | 1.15.006.0090.0063 | 0,80 |
| 110 | 50 | 287 | 55 | 1.15.006.0110.0050 | 0,58 | 1.15.006.0110.0050 | 0,78 | 1.15.006.0110.0050 | 1,15 |
| 110 | 63 | 287 | 55 | 1.15.006.0110.0063 | 0,56 | 1.15.006.0110.0063 | 0,84 | 1.15.006.0110.0063 | 1,17 |
| 110 | 75 | 287 | 55 | 1.15.006.0110.0075 | 0,55 | 1.15.006.0110.0075 | 0,83 | 1.15.006.0110.0075 | 1,19 |
| 110 | 90 | 297 | 55 | 1.15.006.0110.0090 | 0,59 | 1.15.006.0110.0090 | 0,92 | 1.15.006.0110.0090 | 1,32 |
| 125 | 50 | 292 | 62,50 | 1.15.006.0125.0050 | 0,70 | 1.15.006.0125.0050 | 1,01 | 1.15.006.0125.0050 | 1,43 |
| 125 | 63 | 292 | 62,50 | 1.15.006.0125.0063 | 0,69 | 1.15.006.0125.0063 | 1,02 | 1.15.006.0125.0063 | 1,46 |
| 125 | 75 | 302 | 62,50 | 1.15.006.0125.0075 | 0,76 | 1.15.006.0125.0075 | 1,11 | 1.15.006.0125.0075 | 1,58 |
| 125 | 90 | 322 | 62,50 | 1.15.006.0125.0090 | 0,93 | 1.15.006.0125.0090 | 1,34 | 1.15.006.0125.0090 | 1,87 |
| 140 | 50 | 301 | 70 | 1.15.006.0140.0050 | 0,90 | 1.15.006.0140.0050 | 1,30 | 1.15.006.0140.0050 | 1,83 |
| 140 | 63 | 301 | 70 | 1.15.006.0140.0063 | 0,89 | 1.15.006.0140.0063 | 1,31 | 1.15.006.0140.0063 | 1,85 |
| 140 | 90 | 321 | 70 | 1.15.006.0140.0090 | 1,05 | 1.15.006.0140.0090 | 1,55 | 1.15.006.0140.0090 | 2,18 |
| 140 | 110 | 336 | 70 | 1.15.006.0140.0110 | 1,20 | 1.15.006.0140.0110 | 1,77 | 1.15.006.0140.0110 | 2,50 |
| 160 | 50 | 300 | 80 | 1.15.006.0160.0050 | 1,01 | 1.15.006.0160.0050 | 1,53 | 1.15.006.0160.0050 | 2,22 |
| 160 | 63 | 300 | 80 | 1.15.006.0160.0063 | 0,99 | 1.15.006.0160.0063 | 1,53 | 1.15.006.0160.0063 | 2,24 |
| 160 | 75 | 315 | 80 | 1.15.006.0160.0075 | 1,11 | 1.15.006.0160.0075 | 1,69 | 1.15.006.0160.0075 | 2,45 |
| 160 | 90 | 315 | 80 | 1.15.006.0160.0090 | 1,07 | 1.15.006.0160.0090 | 1,69 | 1.15.006.0160.0090 | 2,49 |
| 160 | 110 | 365 | 80 | 1.15.006.0160.0110 | 1,67 | 1.15.006.0160.0110 | 2,43 | 1.15.006.0160.0110 | 3,40 |
| 160 | 125 | 365 | 80 | 1.15.006.0160.0125 | 1,62 | 1.15.006.0160.0125 | 2,41 | 1.15.006.0160.0125 | 3,44 |
| 180 | 50 | 342 | 90 | 1.15.006.0180.0050 | 1,46 | 1.15.006.0180.0050 | 2,22 | 1.15.006.0180.0050 | 3,18 |
| 180 | 63 | 342 | 90 | 1.15.006.0180.0063 | 1,44 | 1.15.006.0180.0063 | 2,22 | 1.15.006.0180.0063 | 3,21 |
| 180 | 90 | 342 | 90 | 1.15.006.0180.0090 | 1,40 | 1.15.006.0180.0090 | 2,22 | 1.15.006.0180.0090 | 3,27 |
| 180 | 110 | 165 | 90 | 1.15.006.0180.0110 | 1,03 | 1.15.006.0180.0110 | 1,53 | 1.15.006.0180.0110 | 2,16 |
| 180 | 125 | 392 | 90 | 1.15.006.0180.0125 | 1,96 | 1.15.006.0180.0125 | 2,98 | 1.15.006.0180.0125 | 4,29 |
| 180 | 140 | 392 | 90 | 1.15.006.0180.0140 | 2,46 | 1.15.006.0180.0140 | 3,30 | 1.15.006.0180.0140 | 4,38 |
| 200 | 50 | 355 | 100 | 1.15.006.0200.0050 | 1,81 | 1.15.006.0200.0050 | 2,76 | 1.15.006.0200.0050 | 3,99 |
| 200 | 63 | 355 | 100 | 1.15.006.0200.0063 | 1,80 | 1.15.006.0200.0063 | 2,77 | 1.15.006.0200.0063 | 4,01 |
| 200 | 90 | 390 | 100 | 1.15.006.0200.0090 | 2,20 | 1.15.006.0200.0090 | 3,31 | 1.15.006.0200.0090 | 4,73 |
| 200 | 110 | 390 | 100 | 1.15.006.0200.0110 | 2,16 | 1.15.006.0200.0110 | 3,33 | 1.15.006.0200.0110 | 4,82 |
| 200 | 125 | 390 | 100 | 1.15.006.0200.0125 | 2,10 | 1.15.006.0200.0125 | 3,30 | 1.15.006.0200.0125 | 4,85 |
| 200 | 140 | 424 | 100 | 1.15.006.0200.0140 | 2,64 | 1.15.006.0200.0140 | 3,96 | 1.15.006.0200.0140 | 5,69 |
| 200 | 160 | 465 | 100 | 1.15.006.0200.0160 | 3,60 | 1.15.006.0200.0160 | 5,15 | 1.15.006.0200.0160 | 7,16 |
| 225 | 63 | 356 | 112,5 | 1.15.006.0225.0063 | 2,14 | 1.15.006.0225.0063 | 3,36 | 1.15.006.0225.0063 | 4,93 |
| 225 | 90 | 386 | 112,50 | 1.15.006.0225.0090 | 2,44 | 1.15.006.0225.0090 | 3,81 | 1.15.006.0225.0090 | 5,57 |
| 225 | 110 | 431 | 112,50 | 1.15.006.0225.0110 | 3,12 | 1.15.006.0225.0110 | 4,70 | 1.15.006.0225.0110 | 6,72 |
| 225 | 125 | 431 | 112,50 | 1.15.006.0225.0125 | 3,09 | 1.15.006.0225.0125 | 4,70 | 1.15.006.0225.0125 | 6,78 |
| 225 | 140 | 431 | 112,50 | 1.15.006.0225.0140 | 3,01 | 1.15.006.0225.0140 | 4,67 | 1.15.006.0225.0140 | 6,80 |
| 225 | 160 | 481 | 112,50 | 1.15.006.0225.0160 | 4,15 | 1.15.006.0225.0160 | 6,09 | 1.15.006.0225.0160 | 8,58 |
| 225 | 180 | 481 | 112,50 | 1.15.006.0225.0180 | 4,04 | 1.15.006.0225.0180 | 6,08 | 1.15.006.0225.0180 | 8,71 |
| 225 | 200 | 112,50 | 1.15.006.0225.0200 | 5,49 | 1.15.006.0225.0200 | 7,09 | 1.15.006.0225.0200 | 9,15 | |
| 250 | 50 | 337 | 125 | 1.15.006.0250.0050 | 2,54 | 1.15.006.0250.0050 | 3,93 | 1.15.006.0250.0050 | 5,74 |
| 250 | 63 | 337 | 125 | 1.15.006.0250.0063 | 2,52 | 1.15.006.0250.0063 | 3,93 | 1.15.006.0250.0063 | 5,76 |
| 250 | 90 | 391 | 125 | 1.15.006.0250.0090 | 3,29 | 1.15.006.0250.0090 | 4,96 | 1.15.006.0250.0090 | 7,13 |
| 250 | 110 | 391 | 125 | 1.15.006.0250.0110 | 3,27 | 1.15.006.0250.0110 | 5,00 | 1.15.006.0250.0110 | 7,24 |
| 250 | 125 | 391 | 125 | 1.15.006.0250.0125 | 3,23 | 1.15.006.0250.0125 | 4,99 | 1.15.006.0250.0125 | 7,29 |
| 250 | 140 | 412 | 125 | 1.15.006.0250.0140 | 3,58 | 1.15.006.0250.0140 | 5,47 | 1.15.006.0250.0140 | 7,93 |
| 250 | 160 | 412 | 125 | 1.15.006.0250.0160 | 3,51 | 1.15.006.0250.0160 | 5,52 | 1.15.006.0250.0160 | 8,13 |
| 250 | 180 | 454 | 125 | 1.15.006.0250.0180 | 4,48 | 1.15.006.0250.0180 | 6,77 | 1.15.006.0250.0180 | 9,72 |
| 250 | 200 | 125 | 1.15.006.0250.0200 | 5,81 | 1.15.006.0250.0200 | 7,65 | 1.15.006.0250.0200 | 10,05 | |
| 280 | 63 | 335 | 140 | 1.15.006.0280.0063 | 3,04 | 1.15.006.0280.0063 | 4,75 | 1.15.006.0280.0063 | 7,05 |
| 280 | 90 | 400 | 140 | 1.15.006.0280.0090 | 4,04 | 1.15.006.0280.0090 | 17,31 | 1.15.006.0280.0090 | 8,93 |
| 280 | 110 | 400 | 140 | 1.15.006.0280.0110 | 4,04 | 1.15.006.0280.0110 | 6,09 | 1.15.006.0280.0110 | 9,03 |
| 280 | 140 | 460 | 140 | 1.15.006.0280.0140 | 5,34 | 1.15.006.0280.0140 | 7,91 | 1.15.006.0280.0140 | 11,23 |
| 280 | 160 | 460 | 140 | 1.15.006.0280.0160 | 5,34 | 1.15.006.0280.0160 | 8,03 | 1.15.006.0280.0160 | 11,50 |
| 280 | 180 | 460 | 140 | 1.15.006.0280.0180 | 2,25 | 1.15.006.0280.0180 | 8,04 | 1.15.006.0280.0180 | 11,63 |
| 280 | 200 | 503 | 140 | 1.15.006.0280.0200 | 7,63 | 1.15.006.0280.0200 | 10,73 | 1.15.006.0280.0200 | 14,74 |
| 280 | 225 | 503 | 140 | 1.15.006.0280.0225 | 6,57 | 1.15.006.0280.0225 | 9,81 | 1.15.006.0280.0225 | 17,01 |
| 315 | 63 | 411 | 157,5 | 1.15.006.0315.0063 | 5,97 | 1.15.006.0315.0063 | 8,70 | 1.15.006.0315.0063 | 12,18 |
| 315 | 90 | 411 | 157,5 | 1.15.006.0315.0090 | 5,07 | 1.15.006.0315.0090 | 7,84 | 1.15.006.0315.0090 | 11,38 |
| 315 | 110 | 411 | 157,5 | 1.15.006.0315.0110 | 5,04 | 1.15.006.0315.0110 | 7,88 | 1.15.006.0315.0110 | 11,48 |
| 315 | 125 | 411 | 157,5 | 1.15.006.0315.0125 | 5,00 | 1.15.006.0315.0125 | 7,87 | 1.15.006.0315.0125 | 11,53 |
| 315 | 140 | 431 | 157,5 | 1.15.006.0315.0140 | 5,40 | 1.15.006.0315.0140 | 8,44 | 1.15.006.0315.0140 | 12,33 |
| 315 | 160 | 471 | 157,5 | 1.15.006.0315.0160 | 6,45 | 1.15.006.0315.0160 | 9,88 | 1.15.006.0315.0160 | 14,25 |
| 315 | 180 | 471 | 157,50 | 1.15.006.0315.0180 | 6,36 | 1.15.006.0315.0180 | 9,88 | 1.15.006.0315.0180 | 14,38 |
| 315 | 200 | 511 | 157,50 | 1.15.006.0315.0200 | 7,89 | 1.15.006.0315.0200 | 11,78 | 1.15.006.0315.0200 | 16,74 |
| 315 | 225 | 511 | 157,50 | 1.15.006.0315.0225 | 7,35 | 1.15.006.0315.0225 | 11,38 | 1.15.006.0315.0225 | 16,52 |
| 355 | 63 | 421 | 177,50 | 1.15.006.0355.0063 | 6,44 | 1.15.006.0355.0063 | 9,97 | 1.15.006.0355.0063 | 14,46 |
| 355 | 90 | 421 | 177,50 | 1.15.006.0355.0090 | 6,43 | 1.15.006.0355.0090 | 10,00 | 1.15.006.0355.0090 | 14,55 |
| 355 | 110 | 421 | 177,50 | 1.15.006.0355.0110 | 6,41 | 1.15.006.0355.0110 | 10,04 | 1.15.006.0355.0110 | 14,66 |
| 355 | 125 | 421 | 177,50 | 1.15.006.0355.0125 | 6,36 | 1.15.006.0355.0125 | 10,03 | 1.15.006.0355.0125 | 14,71 |
| 355 | 140 | 481 | 177,50 | 1.15.006.0355.0140 | 7,96 | 1.15.006.0355.0140 | 12,17 | 1.15.006.0355.0140 | 17,53 |
| 355 | 160 | 481 | 177,50 | 1.15.006.0355.0160 | 7,97 | 1.15.006.0355.0160 | 12,29 | 1.15.006.0355.0160 | 17,81 |
| 355 | 180 | 481 | 177,50 | 1.15.006.0355.0180 | 7,89 | 1.15.006.0355.0180 | 12,32 | 1.15.006.0355.0180 | 17,95 |
| 355 | 200 | 506 | 177,50 | 1.15.006.0355.0200 | 8,63 | 1.15.006.0355.0200 | 13,36 | 1.15.006.0355.0200 | 19,39 |
| 355 | 225 | 521 | 177,50 | 1.15.006.0355.0225 | 8,97 | 1.15.006.0355.0225 | 13,97 | 1.15.006.0355.0225 | 20,34 |
| 355 | 250 | 320 | 177,50 | 1.15.006.0355.0250 | 6,25 | 1.15.006.0355.0250 | 9,20 | 1.15.006.0355.0250 | 12,98 |
| 355 | 280 | 177,50 | 1.15.006.0355.0280 | 13,38 | 1.15.006.0355.0280 | 18,03 | 1.15.006.0355.0280 | 23,95 | |
| 400 | 63 | 437 | 200 | 1.15.006.0400.0063 | 8,16 | 1.15.006.0400.0063 | 12,24 | 1.15.006.0400.0063 | 18,72 |
| 400 | 90 | 437 | 200 | 1.15.006.0400.0090 | 8,13 | 1.15.006.0400.0090 | 12,68 | 1.15.006.0400.0090 | 18,80 |
| 400 | 110 | 437 | 200 | 1.15.006.0400.0110 | 8,10 | 1.15.006.0400.0110 | 12,82 | 1.15.006.0400.0110 | 18,90 |
| 400 | 125 | 467 | 200 | 1.15.006.0400.0125 | 8,96 | 1.15.006.0400.0125 | 14,03 | 1.15.006.0400.0125 | 20,56 |
| 400 | 140 | 467 | 200 | 1.15.006.0400.0140 | 8,91 | 1.15.006.0400.0140 | 14,02 | 1.15.006.0400.0140 | 20,62 |
| 400 | 160 | 514 | 200 | 1.15.006.0400.0160 | 10,31 | 1.15.006.0400.0160 | 16,03 | 1.15.006.0400.0160 | 23,41 |
| 400 | 180 | 514 | 200 | 1.15.006.0400.0180 | 10,26 | 1.15.006.0400.0180 | 16,09 | 1.15.006.0400.0180 | 23,59 |
| 400 | 200 | 552 | 200 | 1.15.006.0400.0200 | 11,28 | 1.15.006.0400.0200 | 17,60 | 1.15.006.0400.0200 | 25,75 |
| 400 | 225 | 552 | 200 | 1.15.006.0400.0225 | 11,41 | 1.15.006.0400.0225 | 17,88 | 1.15.006.0400.0225 | 26,21 |
| 400 | 250 | 380 | 200 | 1.15.006.0400.0250 | 9,71 | 1.15.006.0400.0250 | 13,99 | 1.15.006.0400.0250 | 19,52 |
| 400 | 280 | 622 | 200 | 1.15.006.0400.0280 | 14,47 | 1.15.006.0400.0280 | 22,17 | 1.15.006.0400.0280 | 32,08 |
| 450 | 63 | 455 | 225 | 1.15.006.0450.0063 | 10,58 | 1.15.006.0450.0063 | 16,65 | 1.15.006.0450.0063 | 24,52 |
| 450 | 90 | 455 | 225 | 1.15.006.0450.0090 | 10,57 | 1.15.006.0450.0090 | 16,60 | 1.15.006.0450.0090 | 24,61 |
| 450 | 110 | 455 | 225 | 1.15.006.0450.0110 | 10,54 | 1.15.006.0450.0110 | 16,74 | 1.15.006.0450.0110 | 24,70 |
| 450 | 125 | 490 | 225 | 1.15.006.0450.0125 | 11,64 | 1.15.006.0450.0125 | 18,28 | 1.15.006.0450.0125 | 26,96 |
| 450 | 140 | 490 | 225 | 1.15.006.0450.0140 | 11,58 | 1.15.006.0450.0140 | 18,34 | 1.15.006.0450.0140 | 27,01 |
| 450 | 160 | 530 | 225 | 1.15.006.0450.0160 | 13,04 | 1.15.006.0450.0160 | 20,44 | 1.15.006.0450.0160 | 29,95 |
| 450 | 180 | 530 | 225 | 1.15.006.0450.0180 | 12,96 | 1.15.006.0450.0180 | 20,47 | 1.15.006.0450.0180 | 30,10 |
| 450 | 225 | 635 | 225 | 1.15.006.0450.0225 | 17,65 | 1.15.006.0450.0225 | 26,41 | 1.15.006.0450.0225 | 38,54 |
| 450 | 250 | 635 | 225 | 1.15.006.0450.0250 | 17,55 | 1.15.006.0450.0250 | 26,85 | 1.15.006.0450.0250 | 38,84 |
| 450 | 280 | 635 | 225 | 1.15.006.0450.0280 | 17,33 | 1.15.006.0450.0280 | 26,97 | 1.15.006.0450.0280 | 39,35 |
| 450 | 315 | 710 | 225 | 1.15.006.0450.0315 | 22,13 | 1.15.006.0450.0315 | 33,10 | 1.15.006.0450.0315 | 47,17 |
| 450 | 355 | 710 | 225 | 1.15.006.0450.0355 | 21,51 | 1.15.006.0450.0355 | 33,08 | 1.15.006.0450.0355 | 47,92 |
| 500 | 63 | 430 | 250 | 1.15.006.0500.0063 | 11,98 | 1.15.006.0500.0063 | 19,08 | 1.15.006.0500.0063 | 28,20 |
| 500 | 90 | 490 | 250 | 1.15.006.0500.0090 | 14,02 | 1.15.006.0500.0090 | 22,20 | 1.15.006.0500.0090 | 32,61 |
| 500 | 110 | 490 | 250 | 1.15.006.0500.0110 | 14,00 | 1.15.006.0500.0110 | 22,24 | 1.15.006.0500.0110 | 32,71 |
| 500 | 125 | 490 | 250 | 1.15.006.0500.0125 | 13,97 | 1.15.006.0500.0125 | 22,24 | 1.15.006.0500.0125 | 32,77 |
| 500 | 140 | 505 | 250 | 1.15.006.0500.0140 | 14,48 | 1.15.006.0500.0140 | 23,05 | 1.15.006.0500.0140 | 33,95 |
| 500 | 160 | 550 | 250 | 1.15.006.0500.0160 | 16,32 | 1.15.006.0500.0160 | 25,75 | 1.15.006.0500.0160 | 37,75 |
| 500 | 180 | 550 | 250 | 1.15.006.0500.0180 | 16,26 | 1.15.006.0500.0180 | 25,79 | 1.15.006.0500.0180 | 37,91 |
| 500 | 200 | 600 | 250 | 1.15.006.0500.0200 | 18,53 | 1.15.006.0500.0200 | 28,98 | 1.15.006.0500.0200 | 42,28 |
| 500 | 225 | 600 | 250 | 1.15.006.0500.0225 | 18,37 | 1.15.006.0500.0225 | 28,96 | 1.15.006.0500.0225 | 42,45 |
| 500 | 250 | 600 | 250 | 1.15.006.0500.0250 | 20,77 | 1.15.006.0500.0250 | 30,68 | 1.15.006.0500.0250 | 43,29 |
| 500 | 280 | 650 | 250 | 1.15.006.0500.0280 | 20,78 | 1.15.006.0500.0280 | 32,69 | 1.15.006.0500.0280 | 47,88 |
| 500 | 315 | 705 | 250 | 1.15.006.0500.0315 | 24,08 | 1.15.006.0500.0315 | 37,23 | 1.15.006.0500.0315 | 53,97 |
| 500 | 355 | 800 | 250 | 1.15.006.0500.0355 | 32,42 | 1.15.006.0500.0355 | 47,75 | 1.15.006.0500.0355 | 67,25 |
| 500 | 400 | 800 | 250 | 1.15.006.0500.0400 | 31,43 | 1.15.006.0500.0400 | 47,32 | 1.15.006.0500.0400 | 67,58 |
| 560 | 50 | 435 | 280 | 1.15.006.0560.0050 | 15,17 | 1.15.006.0560.0050 | 24,14 | 1.15.006.0560.0050 | 35,65 |
| 560 | 63 | 435 | 280 | 1.15.006.0560.0063 | 15,15 | 1.15.006.0560.0063 | 24,14 | 1.15.006.0560.0063 | 35,67 |
| 560 | 90 | 500 | 280 | 1.15.006.0560.0090 | 17,81 | 1.15.006.0560.0090 | 28,19 | 1.15.006.0560.0090 | 41,50 |
| 560 | 110 | 500 | 280 | 1.15.006.0560.0110 | 17,79 | 1.15.006.0560.0110 | 28,22 | 1.15.006.0560.0110 | 41,59 |
| 560 | 125 | 520 | 280 | 1.15.006.0560.0125 | 18,65 | 1.15.006.0560.0125 | 29,53 | 1.15.006.0560.0125 | 43,49 |
| 560 | 140 | 520 | 280 | 1.15.006.0560.0140 | 18,61 | 1.15.006.0560.0140 | 29,53 | 1.15.006.0560.0140 | 43,55 |
| 560 | 160 | 562 | 280 | 1.15.006.0560.0160 | 20,62 | 1.15.006.0560.0160 | 32,53 | 1.15.006.0560.0160 | 47,80 |
| 560 | 180 | 562 | 280 | 1.15.006.0560.0180 | 20,56 | 1.15.006.0560.0180 | 32,57 | 1.15.006.0560.0180 | 47,96 |
| 560 | 200 | 585 | 280 | 1.15.006.0560.0200 | 21,66 | 1.15.006.0560.0200 | 34,24 | 1.15.006.0560.0200 | 50,37 |
| 560 | 225 | 720 | 280 | 1.15.006.0560.0225 | 27,45 | 1.15.006.0560.0225 | 42,96 | 1.15.006.0560.0225 | 62,84 |
| 560 | 250 | 720 | 280 | 1.15.006.0560.0250 | 27,27 | 1.15.006.0560.0250 | 42,95 | 1.15.006.0560.0250 | 63,06 |
| 560 | 280 | 795 | 280 | 1.15.006.0560.0280 | 32,41 | 1.15.006.0560.0280 | 49,95 | 1.15.006.0560.0280 | 72,45 |
| 560 | 315 | 795 | 280 | 1.15.006.0560.0315 | 31,98 | 1.15.006.0560.0315 | 49,85 | 1.15.006.0560.0315 | 72,45 |
| 560 | 355 | 840 | 280 | 1.15.006.0560.0355 | 35,48 | 1.15.006.0560.0355 | 54,89 | 1.15.006.0560.0355 | 79,75 |
| 560 | 400 | 810 | 280 | 1.15.006.0560.0400 | 36,83 | 1.15.006.0560.0400 | 56,18 | 1.15.006.0560.0400 | 81,00 |
| 560 | 450 | 860 | 280 | 1.15.006.0560.0450 | 42,19 | 1.15.006.0560.0450 | 63,77 | 1.15.006.0560.0450 | 91,42 |
| 630 | 63 | 495 | 315 | 1.15.006.0630.0063 | 22,04 | 1.15.006.0630.0063 | 35,05 | 1.15.006.0630.0063 | 51,63 |
| 630 | 90 | 495 | 315 | 1.15.006.0630.090 | 22,01 | 1.15.006.0630.090 | 35,07 | 1.15.006.0630.090 | 51,70 |
| 630 | 110 | 510 | 315 | 1.15.006.0630.0110 | 22,77 | 1.15.006.0630.0110 | 36,28 | 1.15.006.0630.0110 | 53,48 |
| 630 | 125 | 510 | 315 | 1.15.006.0630.0125 | 22,73 | 1.15.006.0630.0125 | 36,28 | 1.15.006.0630.0125 | 53,54 |
| 630 | 140 | 550 | 315 | 1.15.006.0630.0140 | 24,88 | 1.15.006.0630.0140 | 39,52 | 1.15.006.0630.0140 | 58,18 |
| 630 | 160 | 550 | 315 | 1.15.006.0630.0160 | 24,87 | 1.15.006.0630.0160 | 39,63 | 1.15.006.0630.0160 | 58,43 |
| 630 | 180 | 620 | 315 | 1.15.006.0630.0180 | 29,04 | 1.15.006.0630.0180 | 45,74 | 1.15.006.0630.0180 | 67,00 |
| 630 | 200 | 620 | 315 | 1.15.006.0630.0200 | 28,99 | 1.15.006.0630.0200 | 45,78 | 1.15.006.0630.0200 | 67,17 |
| 630 | 225 | 620 | 315 | 1.15.006.0630.0225 | 28,85 | 1.15.006.0630.0225 | 45,78 | 1.15.006.0630.0225 | 67,36 |
| 630 | 250 | 650 | 315 | 1.15.006.0630.0250 | 30,73 | 1.15.006.0630.0250 | 48,62 | 1.15.006.0630.0250 | 71,43 |
| 630 | 280 | 725 | 315 | 1.15.006.0630.0280 | 36,40 | 1.15.006.0630.0280 | 56,57 | 1.15.006.0630.0280 | 82,30 |
| 630 | 315 | 725 | 315 | 1.15.006.0630.0315 | 36,00 | 1.15.006.0630.0315 | 56,51 | 1.15.006.0630.0315 | 82,64 |
| 630 | 355 | 770 | 315 | 1.15.006.0630.0355 | 39,84 | 1.15.006.0630.0355 | 62,14 | 1.15.006.0630.0355 | 90,54 |
| 630 | 400 | 870 | 315 | 1.15.006.0630.0400 | 50,38 | 1.15.006.0630.0400 | 75,85 | 1.15.006.0630.0400 | 108,35 |
| 630 | 450 | 870 | 315 | 1.15.006.0630.0450 | 49,35 | 1.15.006.0630.0450 | 76,02 | 1.15.006.0630.0450 | 110,03 |
| 630 | 500 | 870 | 315 | 1.15.006.0630.0500 | 46,64 | 1.15.006.0630.0500 | 74,23 | 1.15.006.0630.0500 | 109,38 |
| 710 | 90 | 520 | 355 | 1.15.006.0710.0090 | 29,36 | 1.15.006.0710.0090 | 46,70 | 1.15.006.0710.0090 | 68,94 |
| 710 | 110 | 520 | 355 | 1.15.006.0710.0110 | 29,33 | 1.15.006.0710.0110 | 46,73 | 1.15.006.0710.0110 | 69,04 |
| 710 | 125 | 520 | 355 | 1.15.006.0710.0125 | 29,30 | 1.15.006.0710.0125 | 46,73 | 1.15.006.0710.0125 | 69,10 |
| 710 | 140 | 580 | 355 | 1.15.006.0710.0140 | 33,29 | 1.15.006.0710.0140 | 52,57 | 1.15.006.0710.0140 | 77,74 |
| 710 | 160 | 580 | 355 | 1.15.006.0710.0160 | 33,29 | 1.15.006.0710.0160 | 52,87 | 1.15.006.0710.0160 | 78,01 |
| 710 | 180 | 580 | 355 | 1.15.006.0710.0180 | 33,24 | 1.15.006.0710.0180 | 52,93 | 1.15.006.0710.0180 | 78,18 |
| 710 | 200 | 605 | 355 | 1.15.006.0710.0200 | 34,95 | 1.15.006.0710.0200 | 55,56 | 1.15.006.0710.0200 | 82,01 |
| 710 | 225 | 660 | 355 | 1.15.006.0710.0225 | 39,03 | 1.15.006.0710.0225 | 61,62 | 1.15.006.0710.0225 | 90,60 |
| 710 | 250 | 660 | 355 | 1.15.006.0710.0250 | 38,91 | 1.15.006.0710.0250 | 61,66 | 1.15.006.0710.0250 | 90,87 |
| 710 | 280 | 780 | 355 | 1.15.006.0710.0280 | 49,59 | 1.15.006.0710.0280 | 76,65 | 1.15.006.0710.0280 | 111,38 |
| 710 | 315 | 780 | 355 | 1.15.006.0710.0315 | 51,89 | 1.15.006.0710.0315 | 79,28 | 1.15.006.0710.0315 | 114,41 |
| 710 | 355 | 780 | 355 | 1.15.006.0710.0355 | 52,07 | 1.15.006.0710.0355 | 80,07 | 1.15.006.0710.0355 | 115,97 |
| 710 | 400 | 880 | 355 | 1.15.006.0710.0400 | 60,48 | 1.15.006.0710.0400 | 92,35 | 1.15.006.0710.0400 | 133,26 |
| 710 | 450 | 880 | 355 | 1.15.006.0710.0450 | 59,96 | 1.15.006.0710.0450 | 93,03 | 1.15.006.0710.0450 | 135,46 |
| 710 | 500 | 940 | 355 | 1.15.006.0710.0500 | 67,49 | 1.15.006.0710.0500 | 103,47 | 1.15.006.0710.0500 | 149,60 |
| 800 | 90 | 535 | 400 | 1.15.006.0800.0090 | 38,23 | 1.15.006.0800.0090 | 60,76 | 1.15.006.0800.0090 | 89,96 |
| 800 | 110 | 535 | 400 | 1.15.006.0800.0110 | 38,21 | 1.15.006.0800.0110 | 60,79 | 1.15.006.0800.0110 | 90,06 |
| 800 | 125 | 535 | 400 | 1.15.006.0800.0125 | 38,17 | 1.15.006.0800.0125 | 60,79 | 1.15.006.0800.0125 | 90,12 |
| 800 | 140 | 575 | 400 | 1.15.006.0800.0140 | 41,38 | 1.15.006.0800.0140 | 65,72 | 1.15.006.0800.0140 | 97,28 |
| 800 | 160 | 595 | 400 | 1.15.006.0800.0160 | 43,06 | 1.15.006.0800.0160 | 68,35 | 1.15.006.0800.0160 | 101,15 |
| 800 | 180 | 655 | 400 | 1.15.006.0800.0180 | 47,23 | 1.15.006.0800.0180 | 75,14 | 1.15.006.0800.0180 | 111,33 |
| 800 | 200 | 645 | 400 | 1.15.006.0800.0200 | 47,33 | 1.15.006.0800.0200 | 74,92 | 1.15.006.0800.0200 | 110,69 |
| 800 | 225 | 645 | 400 | 1.15.006.0800.0225 | 47,19 | 1.15.006.0800.0225 | 74,93 | 1.15.006.0800.0225 | 110,88 |
| 800 | 250 | 710 | 400 | 1.15.006.0800.0250 | 53,25 | 1.15.006.0800.0250 | 83,88 | 1.15.006.0800.0250 | 123,60 |
| 800 | 280 | 710 | 400 | 1.15.006.0800.0280 | 53,18 | 1.15.006.0800.0280 | 84,13 | 1.15.006.0800.0280 | 124,27 |
| 800 | 315 | 795 | 400 | 1.15.006.0800.0315 | 61,99 | 1.15.006.0800.0315 | 96,83 | 1.15.006.0800.0315 | 142,00 |
| 800 | 355 | 795 | 400 | 1.15.006.0800.0355 | 61,89 | 1.15.006.0800.0355 | 97,35 | 1.15.006.0800.0355 | 143,28 |
| 800 | 400 | 895 | 400 | 1.15.006.0800.0400 | 74,21 | 1.15.006.0800.0400 | 114,41 | 1.15.006.0800.0400 | 166,54 |
| 800 | 450 | 895 | 400 | 1.15.006.0800.0450 | 73,82 | 1.15.006.0800.0450 | 115,22 | 1.15.006.0800.0450 | 168,86 |
| 800 | 500 | 955 | 400 | 1.15.006.0800.0500 | 81,91 | 1.15.006.0800.0500 | 126,75 | 1.15.006.0800.0500 | 184,79 |
| 800 | 560 | 1025 | 400 | 1.15.006.0800.0560 | 93,28 | 1.15.006.0800.0560 | 142,65 | 1.15.006.0800.0560 | 206,58 |
