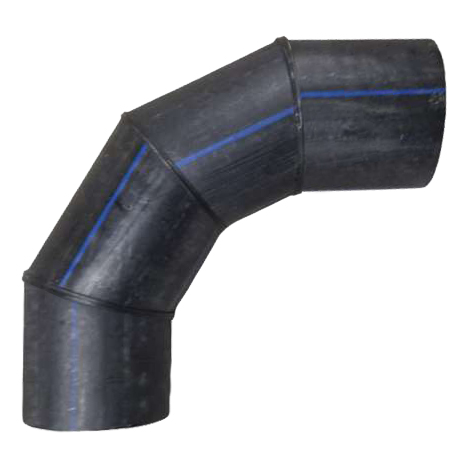

90° Dirsek Konfeksiyon Ek Parçası PE100

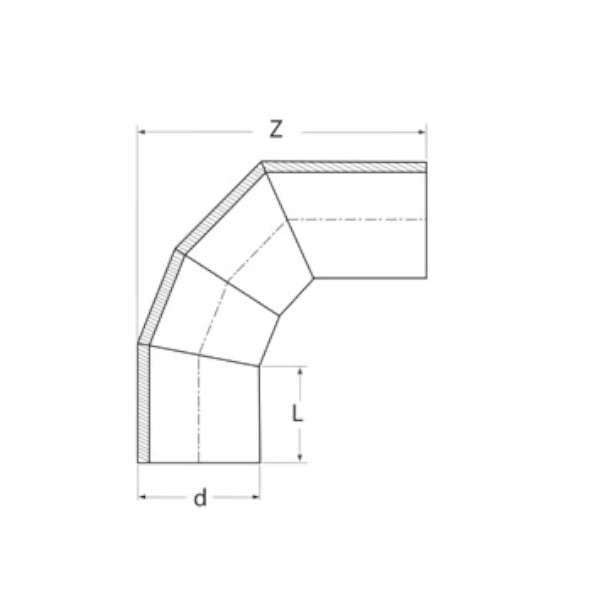

SDR 17 PN10 90° Dirsek:

dKODKg.L(mm)Z (mm)Adet
9020077430,641102641
11020077441,061152931
12520077251,421203051
UO20075461,931253301
16020075472,641303451
18020075483,551353681
20020075495,401454631
22520075507,101504811
25020075519,451605181
280200755212,431705421
315200755316,411805621
355200755422,651956111
400200755530,602106491
450200755641,222256891
500200755757,042457751
560200755897,153051.0701
6302007559126,963051.1051
7102007560167,033051.1451
8002007561223,543201.2051
9002007562302,843501.2851
10002007563387,963501.3351

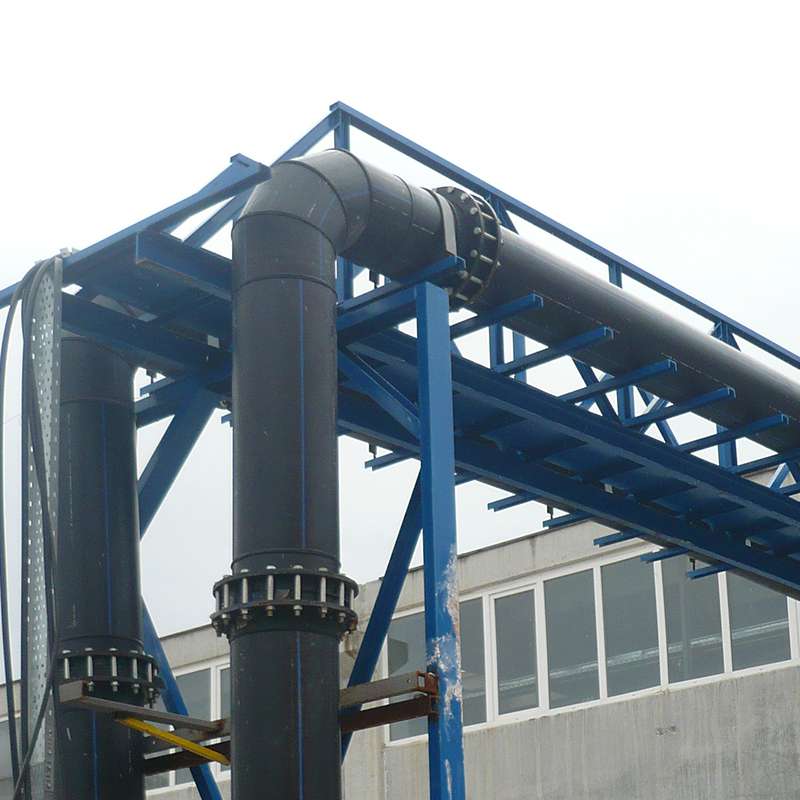

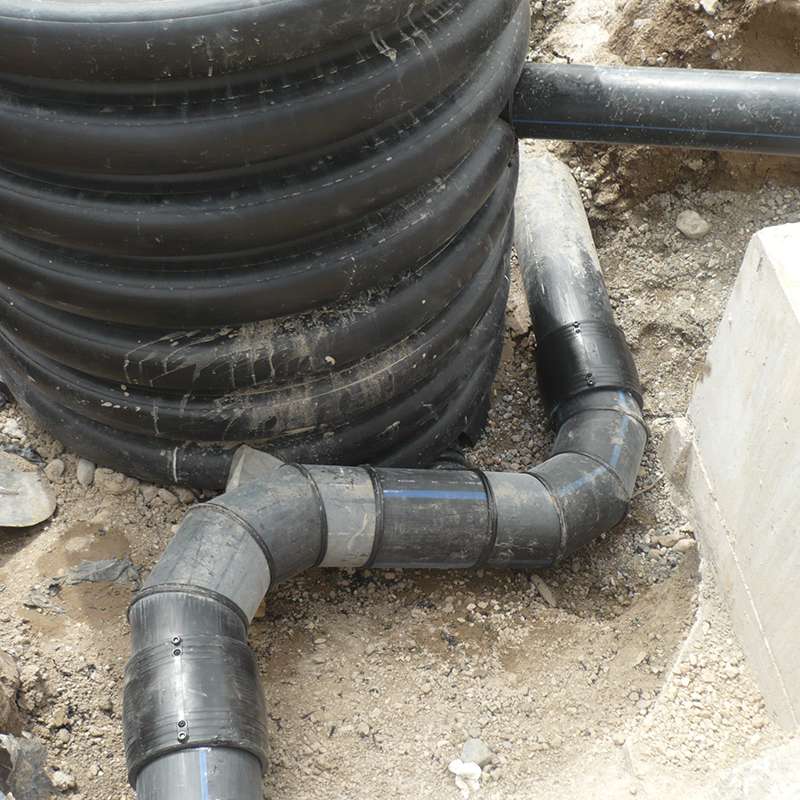

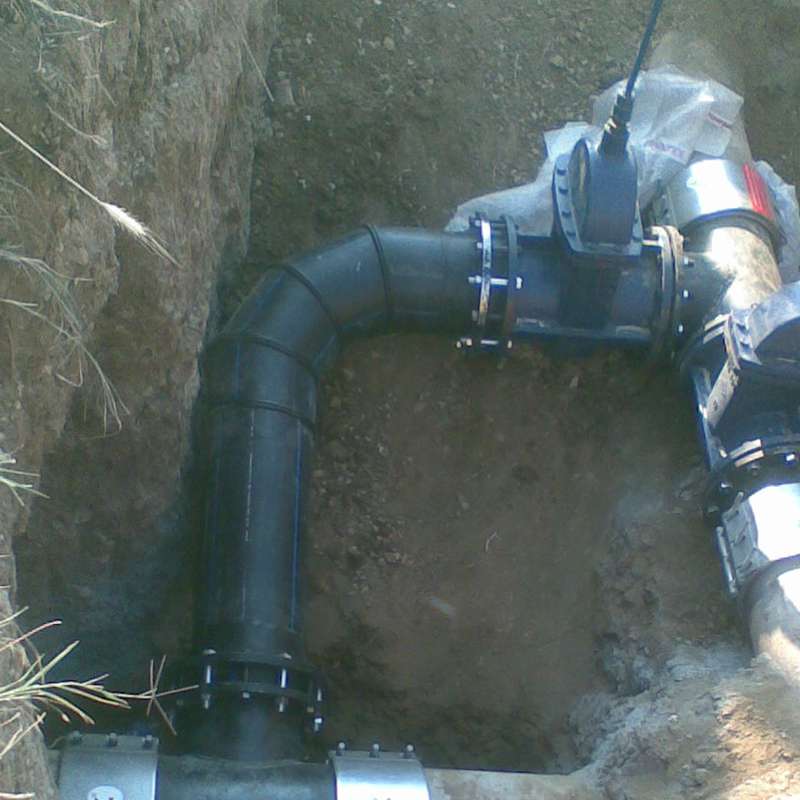

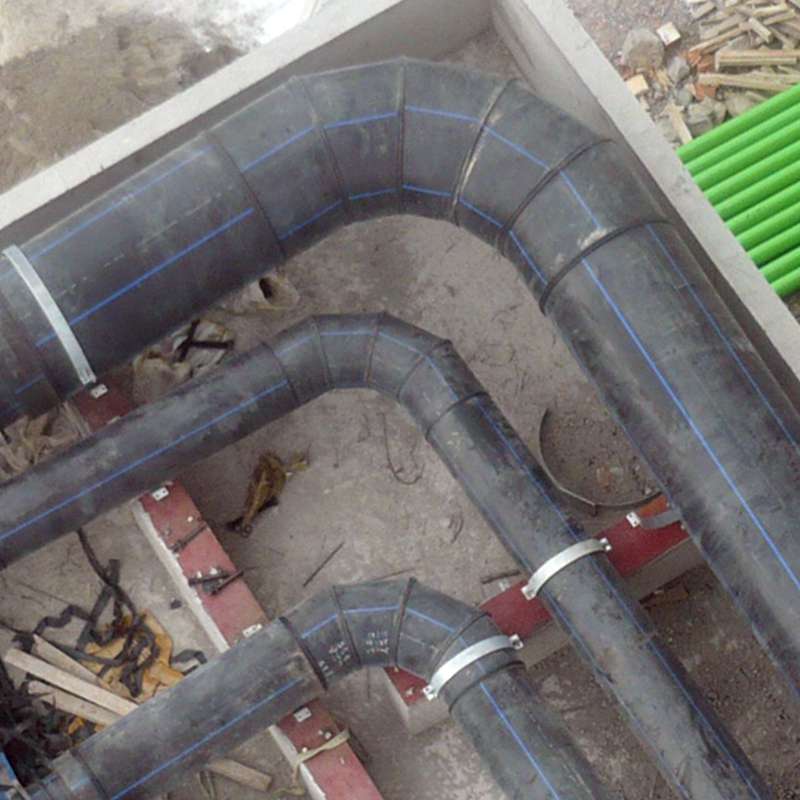

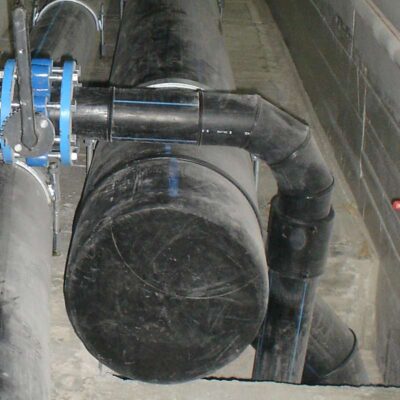

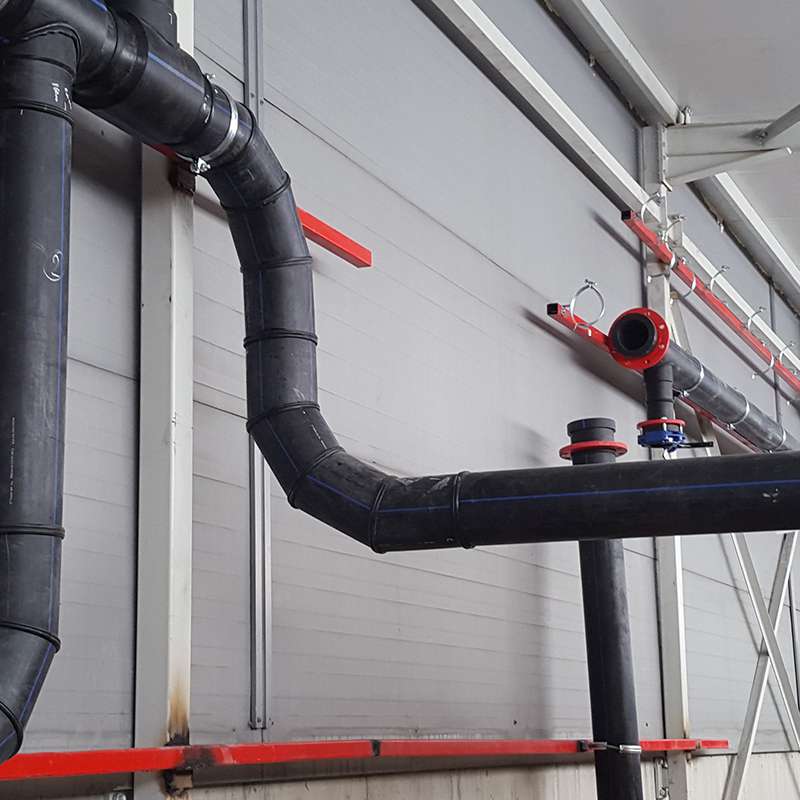

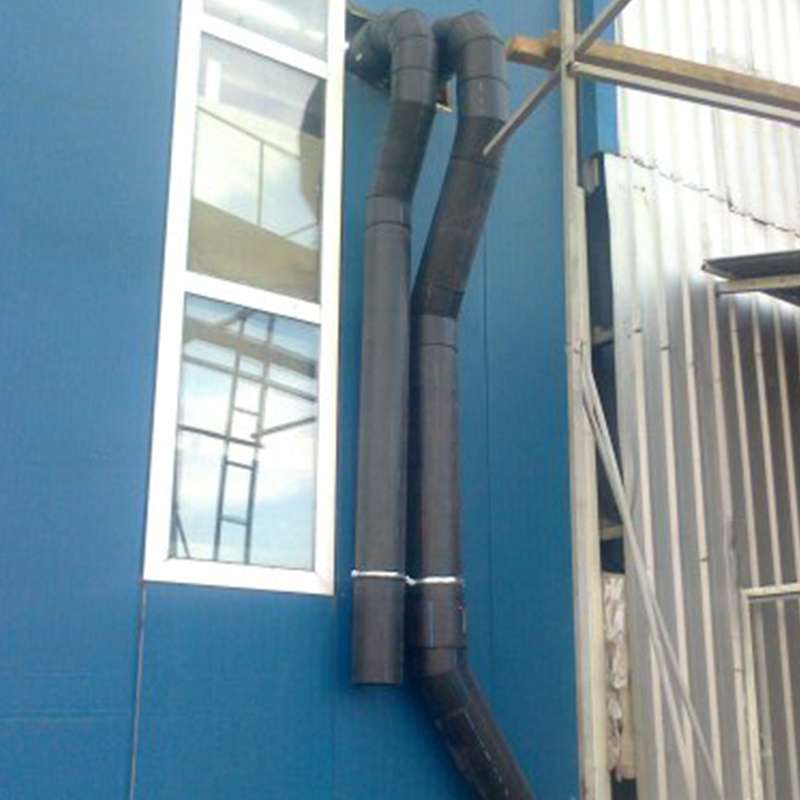

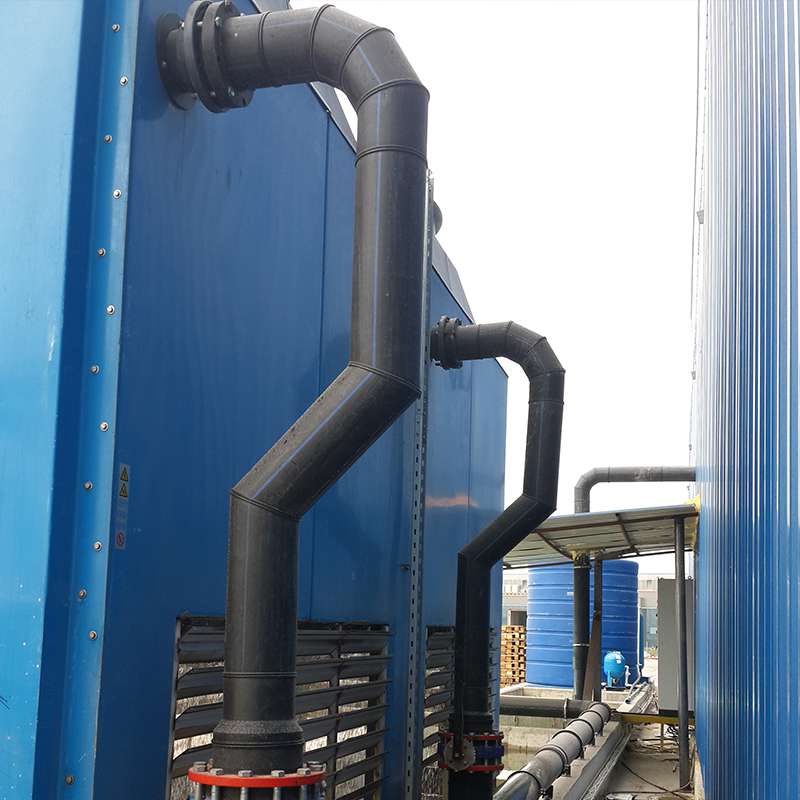

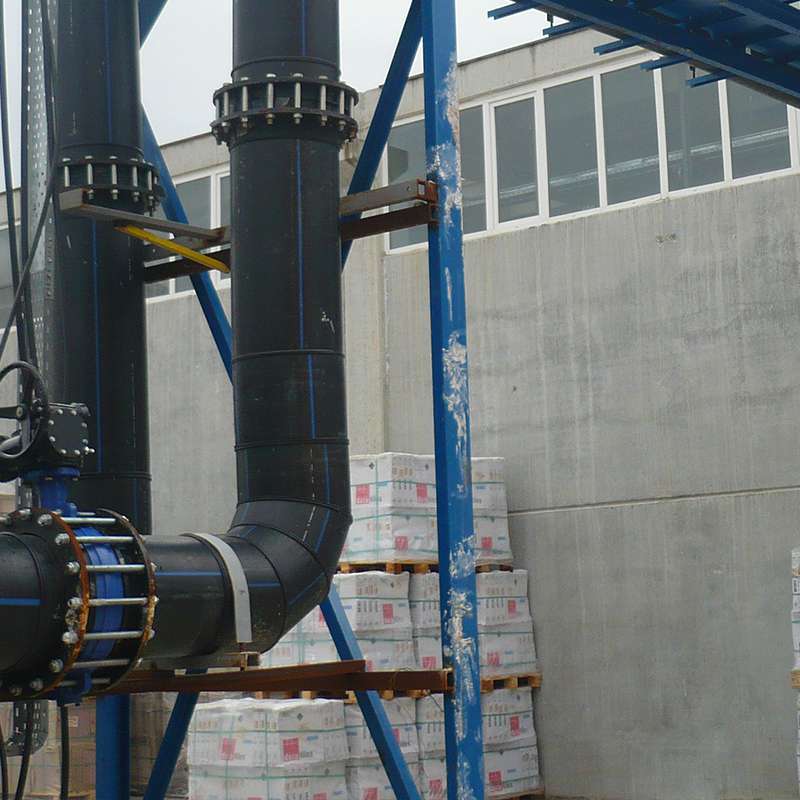

Uygulama alanlarından bazı örnek resimler:

SDR 11 PN16 90° Dirsek

dKODKg.L(mm|Z (mm|
9020077660,95110264
11020077671,55115293
12520076002,10120305
14020076012,85125330
16020076023,88130345
18020076035,22135368
20020076047,95145463
225200760510,45150481
250200760613,90160518
280200760718,29170542
315200760824,12180562
355200760933,30195611
400200761045,00210649
450200761160,63225689
500200761283,88245775
5602007613143,063051.070
6302007714186,823051.105
7102007615245,633051.145
8002007616328,733201.205
9002007617445,353501.285
10002007768570,533501.335
